    • Webhooks

    Webhooks can be added on a per Site basis and allow you to receive notifications when a Snapshot is created, when a budget is exceeded, met or at risk.

    Adding a webhook manually

    To create a new webhook, navigate to Settings → Integrations → Add a Webhook for a given Site and paste in the payload URL (data will be delivered as application/json via HTTP POST).

    You can choose from:

    • Snapshot notifications: sent when a new Snapshot is completed.
    • Budget notifications: sent when a metric Budget is exceeded, met or at risk.

    Create the integration by clicking the Save button.

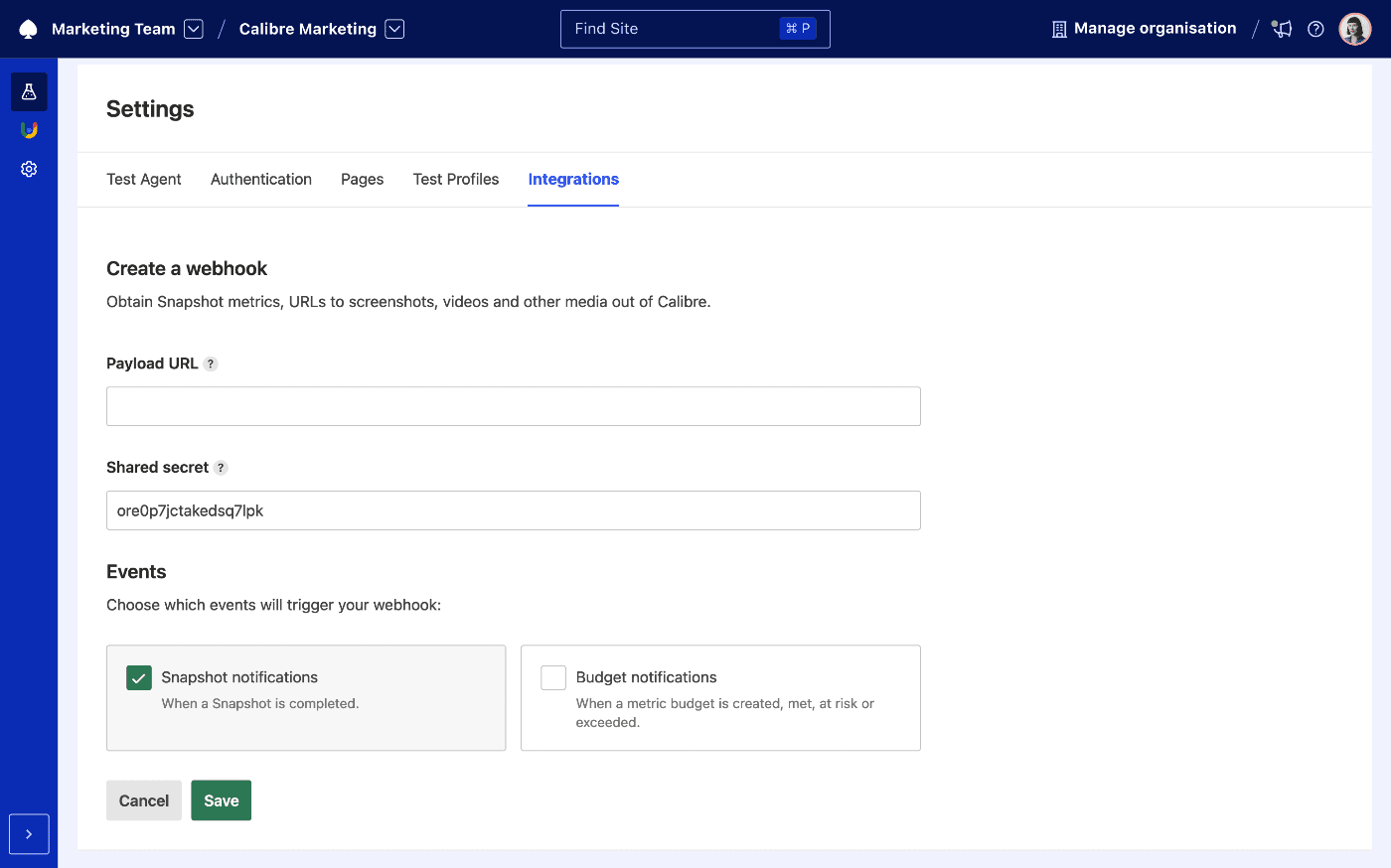

    Webhook creation form

    Adding a webhook pragmatically

    Webhooks and other integrations can be managed pragmatically using the Node.js API. See the Integrations page for more information.

    Example JSON output

    A webhook will be JSON (application/json) delivered via HTTP POST to an endpoint of your choosing. Here is an example of the output:

    1{
    2  "id": 1485,
    3  "organisation_id": "your-organisation-id",
    4  "site_id": "apple",
    5  "primary_region_id": "us-east-1",
    6  "ref": null,
    7  "client": "web",
    8  "status": "completed",
    9  "html_url": "https://calibreapp.com/your-organisation-id/apple/snapshots/1485",
    10  "url": "https://calibreapp.com/api/sites/apple/snapshots/1485.json",
    11  "created_at": "2018-07-16T23:33:17.970Z",
    12  "pages": [
    13    {
    14      "uuid": "xxx-123-456-789-xxx",
    15      "name": "iPhone X",
    16      "status": "completed",
    17      "endpoint": "https://www.apple.com/iphone-x/",
    18      "canonical": false,
    19      "profile": "iPhone 6, 3G connection",
    20      "profile_uuid": "xxx-123-456-789-xxx",
    21      "metrics": [
    22        {
    23          "name": "speed_index",
    24          "value": 14097
    25        },
    26        {
    27          "name": "visually_complete",
    28          "value": 21317
    29        },
    30        {
    31          "name": "lighthouse-seo-score",
    32          "value": 75
    33        },
    34        {
    35          "name": "lighthouse-best-practices-score",
    36          "value": 75
    37        },
    38        {
    39          "name": "lighthouse-accessibility-score",
    40          "value": 87
    41        },
    42        {
    43          "name": "lighthouse-performance-score",
    44          "value": 10
    45        },
    46        {
    47          "name": "lighthouse-pwa-score",
    48          "value": 45
    49        },
    50        {
    51          "name": "js-parse-compile",
    52          "value": 6888
    53        },
    54        {
    55          "name": "time-to-first-byte",
    56          "value": 128
    57        },
    58        {
    59          "name": "first-contentful-paint",
    60          "value": 4433
    61        },
    62        {
    63          "name": "first-meaningful-paint",
    64          "value": 11649
    65        },
    66        {
    67          "name": "firstRender",
    68          "value": 3724
    69        },
    70        {
    71          "name": "dom-size",
    72          "value": 2110
    73        },
    74        {
    75          "name": "estimated-input-latency",
    76          "value": 859
    77        },
    78        {
    79          "name": "consistently-interactive",
    80          "value": 22607
    81        },
    82        {
    83          "name": "first-interactive",
    84          "value": 21248
    85        },
    86        {
    87          "name": "json_body_size_in_bytes",
    88          "value": 2901
    89        },
    90        {
    91          "name": "json_size_in_bytes",
    92          "value": 1747
    93        },
    94        {
    95          "name": "image_body_size_in_bytes",
    96          "value": 863765
    97        },
    98        {
    99          "name": "image_size_in_bytes",
    100          "value": 863790
    101        },
    102        {
    103          "name": "font_body_size_in_bytes",
    104          "value": 402256
    105        },
    106        {
    107          "name": "font_size_in_bytes",
    108          "value": 404248
    109        },
    110        {
    111          "name": "js_body_size_in_bytes",
    112          "value": 1815834
    113        },
    114        {
    115          "name": "js_size_in_bytes",
    116          "value": 425500
    117        },
    118        {
    119          "name": "css_body_size_in_bytes",
    120          "value": 1329225
    121        },
    122        {
    123          "name": "css_size_in_bytes",
    124          "value": 93630
    125        },
    126        {
    127          "name": "html_body_size_in_bytes",
    128          "value": 425563
    129        },
    130        {
    131          "name": "html_size_in_bytes",
    132          "value": 42739
    133        },
    134        {
    135          "name": "page_wait_timing",
    136          "value": 1740
    137        },
    138        {
    139          "name": "page_size_in_bytes",
    140          "value": 2530039
    141        },
    142        {
    143          "name": "page_body_size_in_bytes",
    144          "value": 5537450
    145        },
    146        {
    147          "name": "asset_count",
    148          "value": 59
    149        },
    150        {
    151          "name": "onload",
    152          "value": 22592
    153        },
    154        {
    155          "name": "oncontentload",
    156          "value": 12595
    157        }
    158      ],
    159      "budget_alerts": null,
    160      "artifacts": {
    161        "filmstrip": {
    162          "thumbs": [
    163            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1682063.892.jpg",
    164            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1682532.696.jpg",
    165            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1685799.232.jpg",
    166            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1686499.204.jpg",
    167            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1686899.188.jpg",
    168            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1687299.172.jpg",
    169            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1688782.446.jpg",
    170            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1690182.39.jpg",
    171            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1691349.01.jpg",
    172            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1692448.966.jpg",
    173            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1693715.582.jpg",
    174            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1703281.866.jpg",
    175            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1703365.196.jpg",
    176            "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/1703381.862.jpg"
    177          ],
    178          "video": "https://calibre-screenshots-prod.s3.amazonaws.com/05efb55f-0d2b-4c25-afd4-06dd7038fada/video-timeline/screencast.mp4"
    179        },
    180        "har": "https://calibre-screenshots-prod.s3.amazonaws.com/5e7ebd8f932d99e2a017fd1e16551221/https___www_apple_com_iphone_x_/har/20180716233507265.json?X-Amz-Expires=3600&X-Amz-Date=20180716T233521Z&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAITFRYATLYAH7W3VQ/20180716/us-east-1/s3/aws4_request&X-Amz-SignedHeaders=host&X-Amz-Signature=be3e0818f2b8c24114d2813faf83b11e3a6d6b8084c84fb44ecde27104215045"
    181      }
    182    },
    183    {
    184      "uuid": "xxx-123-456-789-xxx",
    185      "name": "iPhone 6",
    186      "status": "completed",
    187      "endpoint": "https://www.apple.com/iphone-6/",
    188      "canonical": false,
    189      "profile": "iPhone 6, 3G connection",
    190      "profile_uuid": "xxx-123-456-789-xxx",
    191      "metrics": [
    192        {
    193          "name": "speed_index",
    194          "value": 8517
    195        },
    196        {
    197          "name": "visually_complete",
    198          "value": 11477
    199        },
    200        {
    201          "name": "lighthouse-seo-score",
    202          "value": 68
    203        },
    204        {
    205          "name": "lighthouse-best-practices-score",
    206          "value": 68
    207        },
    208        {
    209          "name": "lighthouse-accessibility-score",
    210          "value": 93
    211        },
    212        {
    213          "name": "lighthouse-performance-score",
    214          "value": 26
    215        },
    216        {
    217          "name": "lighthouse-pwa-score",
    218          "value": 36
    219        },
    220        {
    221          "name": "js-parse-compile",
    222          "value": 1501
    223        },
    224        {
    225          "name": "time-to-first-byte",
    226          "value": 108
    227        },
    228        {
    229          "name": "first-contentful-paint",
    230          "value": 3470
    231        },
    232        {
    233          "name": "first-meaningful-paint",
    234          "value": 8449
    235        },
    236        {
    237          "name": "firstRender",
    238          "value": 2398
    239        },
    240        {
    241          "name": "dom-size",
    242          "value": 727
    243        },
    244        {
    245          "name": "estimated-input-latency",
    246          "value": 17
    247        },
    248        {
    249          "name": "consistently-interactive",
    250          "value": 24364
    251        },
    252        {
    253          "name": "first-interactive",
    254          "value": 11378
    255        },
    256        {
    257          "name": "json_body_size_in_bytes",
    258          "value": 1716
    259        },
    260        {
    261          "name": "json_size_in_bytes",
    262          "value": 1011
    263        },
    264        {
    265          "name": "image_body_size_in_bytes",
    266          "value": 1968564
    267        },
    268        {
    269          "name": "image_size_in_bytes",
    270          "value": 1973146
    271        },
    272        {
    273          "name": "font_body_size_in_bytes",
    274          "value": 346672
    275        },
    276        {
    277          "name": "font_size_in_bytes",
    278          "value": 348381
    279        },
    280        {
    281          "name": "js_body_size_in_bytes",
    282          "value": 1077849
    283        },
    284        {
    285          "name": "js_size_in_bytes",
    286          "value": 271680
    287        },
    288        {
    289          "name": "css_body_size_in_bytes",
    290          "value": 720939
    291        },
    292        {
    293          "name": "css_size_in_bytes",
    294          "value": 62227
    295        },
    296        {
    297          "name": "html_body_size_in_bytes",
    298          "value": 51148
    299        },
    300        {
    301          "name": "html_size_in_bytes",
    302          "value": 9958
    303        },
    304        {
    305          "name": "page_wait_timing",
    306          "value": 198
    307        },
    308        {
    309          "name": "page_size_in_bytes",
    310          "value": 2666403
    311        },
    312        {
    313          "name": "page_body_size_in_bytes",
    314          "value": 4166888
    315        },
    316        {
    317          "name": "asset_count",
    318          "value": 73
    319        },
    320        {
    321          "name": "onload",
    322          "value": 28932
    323        },
    324        {
    325          "name": "oncontentload",
    326          "value": 7034
    327        }
    328      ],
    329      "budget_alerts": null,
    330      "artifacts": {
    331        "filmstrip": {
    332          "thumbs": [
    333            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1683338.5.jpg",
    334            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1683999.304.jpg",
    335            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1685749.234.jpg",
    336            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1686815.858.jpg",
    337            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1686882.522.jpg",
    338            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1688649.118.jpg",
    339            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1689749.074.jpg",
    340            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1691798.992.jpg",
    341            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1693432.26.jpg",
    342            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1693732.248.jpg",
    343            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1694015.57.jpg",
    344            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1694032.236.jpg",
    345            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1694098.9.jpg",
    346            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1694315.558.jpg",
    347            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1694498.884.jpg",
    348            "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/1694815.538.jpg"
    349          ],
    350          "video": "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/screencast.mp4",
    351          "gif": "https://calibre-screenshots-prod.s3.amazonaws.com/67ec59cf-0121-4ab7-ab38-e2f4459c40da/video-timeline/screencast.gif"
    352        },
    353        "har": "https://calibre-screenshots-prod.s3.amazonaws.com/f477b5ec59c5a357f1f7d756b23c4645/https___www_apple_com_iphone_6_/har/20180716233446500.json?X-Amz-Expires=3600&X-Amz-Date=20180716T233521Z&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAITFRYATLYAH7W3VQ/20180716/us-east-1/s3/aws4_request&X-Amz-SignedHeaders=host&X-Amz-Signature=86e1fe079e3ce90c81bf81a62369c71c03c31640412cd22dce92c1996f4247b7"
    354      }
    355    }
    356  ]
    357}
    1{
    2  "id": "abc123",
    3  "url": "http://calibreapp.com/teams/your-team/your-site/budgets/abc123",
    4  "organisation_id": "your-organisation",
    5  "site_id": "your-site",
    6  "name": "Largest Contentful Paint",
    7  "abbreviated_name": "LCP",
    8  "value": 3000,
    9  "formatted": "3s",
    10  "status": "At risk",
    11  "threshold": "GreaterThan",
    12  "generated_at": "2020-09-30T05:33:17.970Z",
    13  "budgets": [
    14    {
    15      "profile": {
    16        "id": "pr123",
    17        "name": "Chrome Desktop"
    18      },
    19      "page": {
    20        "id": "p123",
    21        "name": "Marketing Home",
    22        "previews": []
    23      },
    24      "status": "At risk",
    25      "value": 2850,
    26      "formatted": "2.85s"
    27    },
    28    {
    29      "profile": {
    30        "id": "pr456",
    31        "name": "MotoG4, 3G connection"
    32      },
    33      "page": {
    34        "id": "p123",
    35        "name": "Marketing Home",
    36        "previews": []
    37      },
    38      "status": "Met",
    39      "value": 2400,
    40      "formatted": "2.4s"
    41    },
    42    {
    43      "profile": {
    44        "id": "pr789",
    45        "name": "iPhone, 4G LTE"
    46      },
    47      "page": {
    48        "id": "p123",
    49        "name": "Marketing Home",
    50        "previews": []
    51      },
    52      "status": "Met",
    53      "value": 2400,
    54      "formatted": "2.4s"
    55    }
    56  ]
    57}

    Security & Verification

    Webhooks can be securely validated using the Calibre-HMAC-SHA256-Signature header. This header should be used in order to establish that the incoming request originates from Calibre.

    This header is formulated by supplying a shared secret with Calibre.

    Setting a shared secret

    1. Navigate to the webhook in question (Site → Settings → Integrations).
    2. Use the automatically generated secret, or create your own.
    3. Press Save.

    Verifing the secret

    Calibre uses HMAC cryptographic hash signature for verification purposes.

    In order to verify the Calibre request, you will need to use the shared secret that you supplied earlier.

    1// Example built for express.js, using buffer-equal-constant-time
    2// Requires environment variable containing the secret: process.env.SECRET_TOKEN
    3

    4const crypto = require('crypto')
    5const bufferEq = require('buffer-equal-constant-time')
    6

    7const verifyCalibreHMAC = (req, res, next) => {
    8  const payload = req.body()
    9  const payloadSignature = req.header('Calibre-HMAC-SHA256-Signature')
    10

    11  let hmac = crypto.createHmac('sha256', process.env.SECRET_TOKEN)
    12  hmac.write(payload)
    13  hmac.end()
    14

    15  const signature = hmac.read()
    16

    17  if (bufferEq(new Buffer(signature), new Buffer(payloadSignature))) {
    18    next()
    19  } else {
    20    throw new Error('HMAC Signatures do not match')
    21  }
    22}
    23

    24// Express will downcase headers
    25app.use(verifyCalibreHMAC)
    26app.post('/calibre-webhook', (req, res) => {
    27  res.send('We have a valid hmac signature')
    28})
    1// SECRET_TOKEN is an environment variable
    2

    3post '/calibre-webhook' do
    4  request.body.rewind
    5  payload_body = request.body.read
    6  verify_signature(payload_body)
    7

    8  # Safely use the JSON
    9end
    10

    11def verify_signature(payload_body)
    12  signature = OpenSSL::HMAC.hexdigest(OpenSSL::Digest.new('sha256'), ENV['SECRET_TOKEN'], payload_body)
    13  return halt 500, "Signatures didn't match!" unless ActiveSupport::SecurityUtils.secure_compare(signature, request.env['Calibre-HMAC-SHA256-Signature'])
    14end

    Notes:

    • In the examples above we have set the original secret as an environment variable. Never commit the secret to source control.
    • Comparing hashes using the equal comparison operator (==) is not advised as it cannot protect against timing attacks.

    We recommend that you use a third party webhook test service, or enable verbose logging in order to verify the webhooks are delivered in the format as expected.
